Unior 1885-Extension Bar Short #600826
Product code: UR/1885
6.90 SR
material: premium flex chrome vanadium steel
drop forged, entirely hardened and tempered
surface finish: chrome plated according to ISO 1456:2009
made according to standard ISO 3316
Unior 1/4"DR Complete Socket Set 04-13mm-611996
Product code: UR/188
377.20 SR
11x socket 1/4", 6 point (article 188/2 6P) dim. 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 13
1X Reversible ratchet 1/4"
accessories 1/4"; 1x swivel handle, 1x sliding T - handle, 2x extension bar (55, 150mm)
Unior 06-32mm(180/1CB)Ring Wrench Set#600542
Product code: UR/180-32
386.40 SR
12x ring wrench (article 180/1) dim. 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x26, 25x28, 27x32
Unior Air Impact Wrench ½” # 615322
Product code: UR/1561
883.20 SR
free speed 8000 revolution per minutes
max. torque 814 Nm
maximum air pressure: 6,2 Bar
air consumption 113 l/min
air inlet 1/4"
max bolt size M16
Unior Air Ratchet 1/2 DR REVS#615319
Product code: UR/1551
607.20 SR
free speed 160 revolution per minutes
max. torque 81 Nm
maximum air pressure: 6,2 Bar
air consumption 113 l/min
air inlet 1/4"
max bolt size M10
Unior (1300/6) Hand Riveter #615454
Product code: UR/1300
108.10 SR
material: frame from aluminum alloy, lever handle from special composition steel
handle: ergonomic shape
spring for reopening
completed with 4 nose pieces for setting blind rivets up to 4,8 mm or 3/16"
with a wrench for the change of nose-pieces
Unior(110/1CB)06-32MM Wrench Set 12PCS#600106
Product code: UR/110-32
294.40 SR
Set includes:
12x open end wrench (article 110/1) dim.
6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x26, 25x28, 27x32

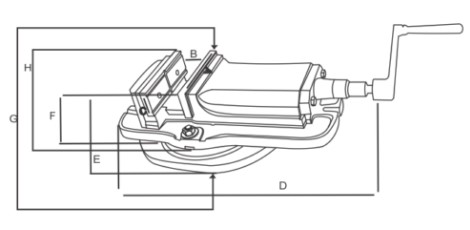

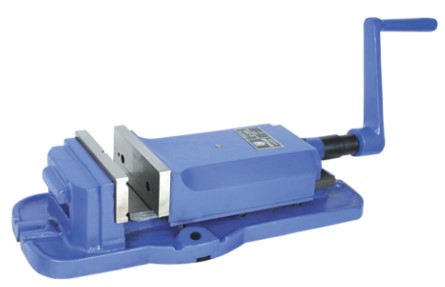

UNIQ MILLING MACHINE VICE - U309S-8''
Product code: UNIQ/MMV-8
2,645.00 SR
Brand Name : Unique
Type : Super Milling Vice (Bridge Port Type) – U309S
Size: 8” inches
Width Of Jaws : 200 mm
Opening Of Jaws : 200 mm
Depth Of Jaws : 65 mm
Length overall in mm : 160
Height overall : 120
Width overall : 310
Slot size in mm: 20 Millimeter
Weight : 66 Kg
Features
• Drill Vice Heavy , body close grain cast iron.
• Special steel ground jaws provided with "V" grove for holding round jobs.
• Lead screw of special steel.
• Large base for rigid mounting on table is provided with "T" slots for griping on the Drilling Machine Table.
• the Swivel base is Graduated fully thought 360°
• Fitted with Thrust Bearing for Smooth Movement.
• Sturdy & accurately made machine vices from graded casting.
• Fine acme thread screw.
• Jaws are made of special steel properly hardened, fixed jaw is provided with vertical & horizontal ‘V’ groove to hold the round job firmly.
• The swivel base is graduated fully through 360º.
• Vice can be converted from swivel base to fix by removing the base.
• Quick alignment to machines through longitudinal slot provided in base & body.
• Crank handle is made of unbreakable steel provided with a spring loaded mechanism providing positive grip.
• Body is provided with water channel.
• Depth of jaws is more to hold heavy jobs.
• Supplied with Stopper for Fast Production.
UNIQ MILLING MACHINE VICE - U309S-6''
Product code: UNIQ/MMV-6
1,840.00 SR
Brand Name : Unique
Type : Super Milling Vice (Bridge Port Type) – U309S
Size: 6” inches
Width Of Jaws : 150 mm
Opening Of Jaws : 150 mm
Depth Of Jaws : 55 mm
Length overall in mm : 370
Height overall : 140
Width overall : 270
Slot size in mm: 38 Millimeter
Weight : 20 Kg
Features
• Drill Vice Heavy , body close grain cast iron.
• Special steel ground jaws provided with "V" grove for holding round jobs.
• Lead screw of special steel.
• Large base for rigid mounting on table is provided with "T" slots for griping on the Drilling Machine Table.
• the Swivel base is Graduated fully thought 360°
• Fitted with Thrust Bearing for Smooth Movement.
• Sturdy & accurately made machine vices from graded casting.
• Fine acme thread screw.
• Jaws are made of special steel properly hardened, fixed jaw is provided with vertical & horizontal ‘V’ groove to hold the round job firmly.
• The swivel base is graduated fully through 360º.
• Vice can be converted from swivel base to fix by removing the base.
• Quick alignment to machines through longitudinal slot provided in base & body.
• Crank handle is made of unbreakable steel provided with a spring-loaded mechanism providing positive grip.
• Body is provided with water channel.
• Depth of jaws is more to hold heavy jobs.
• Supplied with Stopper for Fast Production.
UNIQ MILLING MACHINE VICE - U309S-4''
Product code: UNIQ/MMV-4
1,150.00 SR
Brand Name : Unique
• Drill Vice Heavy , body close grain cast iron.
• Special steel ground jaws provided with "V" grove for holding round jobs.
• Lead screw of special steel.
• Large base for rigid mounting on table is provided with "T" slots for griping on the Drilling Machine Table.
• the Swivel base is Graduated fully thought 360°
• Fitted with Thrust Bearing for Smooth Movement.
• Sturdy & accurately made machine vices from graded casting.
• Fine acme thread screw.
• Jaws are made of special steel properly hardened, fixed jaw is provided with vertical & horizontal ‘V’ groove to hold the round job firmly.
• The swivel base is graduated fully through 360º.
• Vice can be converted from swivel base to fix by removing the base.
• Quick alignment to machines through longitudinal slot provided in base & body.
• Crank handle is made of unbreakable steel provided with a spring loaded mechanism providing positive grip.
• Body is provided with water channel.
• Depth of jaws is more to hold heavy jobs.
• Supplied with Stopper for Fast Production.

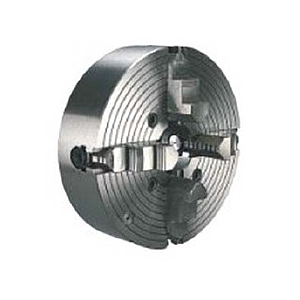

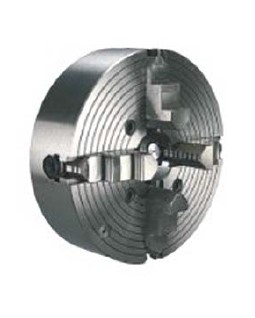

Unique Independent lathe jaw chuck (460 mm,4-Jaws, Double Slot)
Product code: UNIQ/I460
3,967.50 SR
Brand : Unique - Sharp
Type : Drill Chuck ( 6100 Independent Jaw Chuck )
Chuck Size : 460 mm – 17 ¾ “ inches
Through Hole : 100
C.I Body : 1414450
S.G Body : 2414450

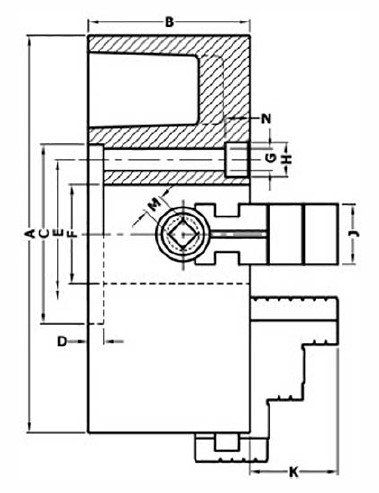

Please refer the image for the below Sizes
A : 450 mm
B : 95 mm
C : 200 mm
D : 12 mm
E : 171.4 mm
F : 100 mm
G : 17 mm
H : 25.4 mm
J : 40 mm
K : 55 mm
M : 14 mm
N : 18 mm
Dimension (L*W*H) : 60*60*30 Cm
Overall Package Weight : 200 Kgs

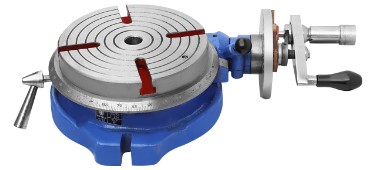

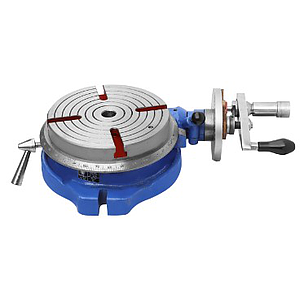

Unique 8''Rotary Milling Table U336
Product code: UNIQ/ERT-HV8
1,092.50 SR
Brand Name : UNIQUE
Type : UNIQ Rotary Milling Table – Code No.U336
Size: 8’’ inches
Día of Table in mm: 200
Table Slot in mm: 12
Center Bush Bore: MT No.-3
Worm & Gear Ratio: 1.72
Calibration: 2Min
Vertical U335 & U337: 290
Weight : 28 Kg
Features:
• The Table & Body manufacturered from close grain shock resisting cast iron.
• The body is provided with two bolt slots in Code No. U335 & U337 for mounting on machine .
• Table vertically & Horizontally.
• Provided with quick & precise disengagement of worm drive.
• Efficient lock provided.
• End play in wormshaft is adjustable.
• An eccentric sleeve with thrust Bearing races in the worm shaft.
• Provision for fine zero adjustment when setting work piece. Works as an index center in the vertical position as well as convential Rotary Table graduated 360º Indexing Plate is provided to enable the user to convert quickly to use indexing plates for fast setting.
• Direct reading to 2 minutes for size 6", 8" & 10" on hand wheel scale.
• Direct reading to 1 minute for size 12", 15",18" & 20" in hand wheel scale.
• High accuracy, easy reading of all dais clear & functional arrangement of all operating elements sturdy yet simple good looking practical design. These are widely used for circular cutting, angle setting, boring & spot facing with a milling machine.
ACCURACY
• Maximum error 2 minutes of circular division using hand wheels.
• Table flat to within 0.005mm/100mm.
• Working surface rotates in its own plane to within 0.01 mm.
• Horizontal & vertical supporting surface square within 0.01mm/100mm..
• Centre bush bore is true to table axis within 0.008 mm.
• Maximum parrillas error through 360º rotation of table is 0.001mm.

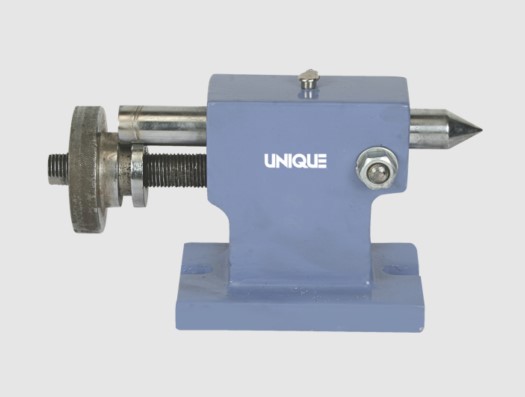

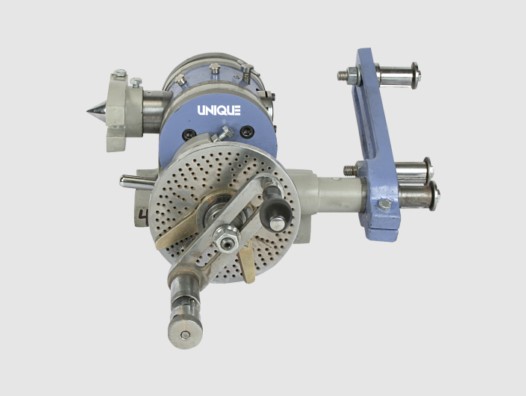

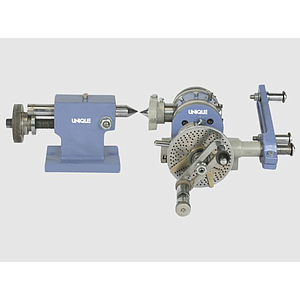

Unique 6.5” Dividing Head Complete Set U351
Product code: UNIQ/EBS-6.5
5,290.00 SR
Brand : Unique
Type: Dividing Head Complete Set – U351
Size: 6.5 Inches
Gear Worm Ratio: 1:40
Centre Height : 165 mm
Spindle Bore : 38 mm
Spindle Taper: 9ᴼ
Overall Height Vertical Position : 310 mm
Length Of Base : 270 mm
Width Of Base : 170 mm
Indexing Plates
Side A : 7,13,16,19,20,23,27,31,33,39,47,53
Side B : 9,11,15,17,18,21,25,29,37,41,49,51

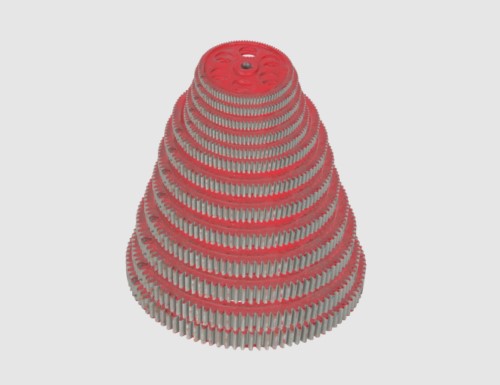

Set of Gears : 24,24,28,32,36,40,44,48,56,64,72,86,100 Teeth D.P 12
Weight : 125 Kg
Features
• Unique Dividing heads are carefully designed for tool Rooms as well as for production purpose .
• They are suitable for indirect and differential indexing as well as for spiral and cam milling operations on universal milling machine.
• Unique dividing heads are manufactured from Selected high quality material with Superior workmanship.
Unique 5.5” Dividing Head Complete Set U351
Product code: UNIQ/EBS-5.5
4,830.00 SR
Brand : Unique
Type: Dividing Head Complete Set – U351
Size: 5.5 Inches
Gear Worm Ratio: 1:40
Centre Height : 142 mm
Spindle Bore : 32 mm
Spindle Taper: 9ᴼ
Overall Height Vertical Position : 230 mm
Length Of Base : 240 mm
Width Of Base : 150 mm
Indexing Plates
Side A : 11,16,19,25,37,41,49
Side B : 13,17,18,27,33,43,51
Set of Gears : 24,24,28,32,36,40,44,48,56,64,72,86,100 Teeth D.P 14
Overall Package Weight : 150 Kg
Features
•Unique Dividing heads are carefully designed for tool Rooms as well as for production purpose .
•They are suitable for indirect and differential indexing as well as for spiral and cam milling operations on universal milling machine.
•Unique dividing heads are manufactured from Selected high quality material with Superior workmanship.

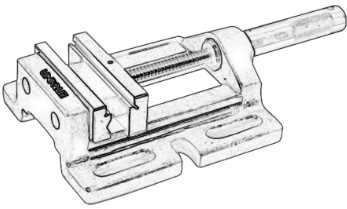

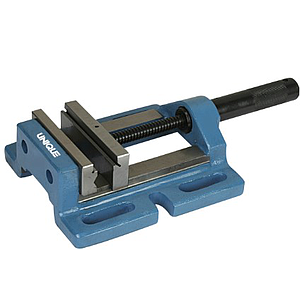

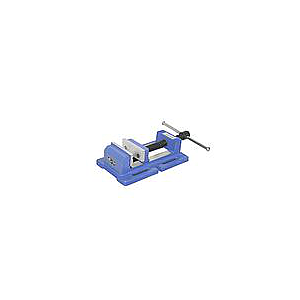

UNIQ DRILL VICE -8''-U306
Product code: UNIQ/DVH-8
476.10 SR
Brand Name : Unique
Type : Heavy Duty Drill Vice – U306
Size: 8” inches
Width Of Jaws : 200 mm
Opening Of Jaws : 200 mm
Depth Of Jaws : 60 mm
Overall L*B*H : 430*270*100 mm
Slot size in mm: 13 Millimeter
Weight : 23 Kg
Features
• Drill Vice Heavy , body close grain cast iron.
• Special steel ground jaws provided with "V" grove for holding round jobs.
• Lead screw of special steel.
• Large base for rigid mounting on table is provided with "T" slots for griping on the Drilling Machine Table.

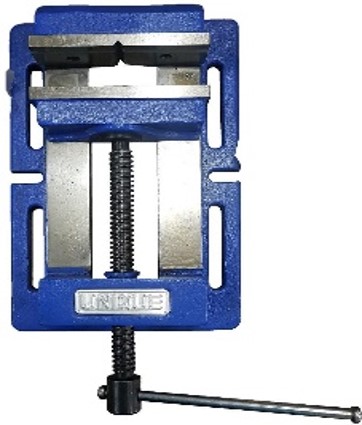

DRILL VICE HEAVY DUTY 0306
Product code: UNIQ/DVH-6
333.50 SR
Brand Name : Unique
Type : Heavy Duty Drill Vice – U306
Size: 6” inches
Width Of Jaws : 150 mm
Opening Of Jaws : 180 mm
Depth Of Jwas : 50 mm
Overall L*B*H : 38*23*9 Cm
Slot size in mm: 13 Millimeter
Weight : 20 Kg
Features
• Drill Vice Heavy , body close grain cast iron.
• Special steel ground jaws provided with "V" grove for holding round jobs.
• Lead screw of special steel.
• Large base for rigid mounting on table is provided with "T" slots for griping on the Drilling Machine Table.

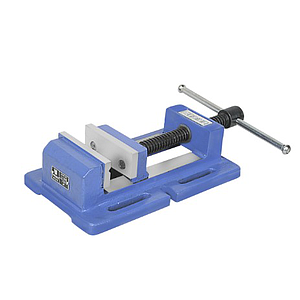

UNIQ DRILL VICE -4''-U306
Product code: UNIQ/DVH-4
201.25 SR
Brand Name : Unique
Type : Heavy Duty Drill Vice – U306
Size: 4” inches
Width Of Jaws : 130 mm
Opening Of Jaws : 100 mm
Depth Of Jaws : 45 mm
Overall L*B*H : 300*160*75 mm
Slot size in mm: 10 Millimeter
Weight : 7.500 Kg
Features
• Drill Vice Heavy , body close grain cast iron.
• Special steel ground jaws provided with "V" grove for holding round jobs.
• Lead screw of special steel.
• Large base for rigid mounting on table is provided with "T" slots for griping on the Drilling Machine Table.

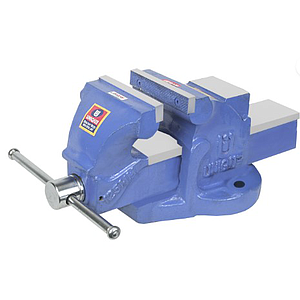

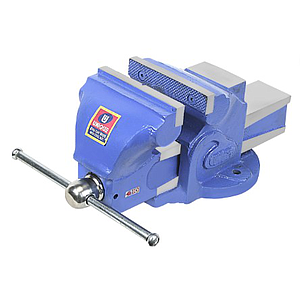

UNIQ DRILL VICE U328-5
Product code: UNIQ/DVG-5
345.00 SR
Brand : UNIQ MACHINES’S BENCH VICE
Type : Mechanics Bench Vice, Fixed Base Code No. U328
Model : U328
Code: U328
SIZE : 5 inch.

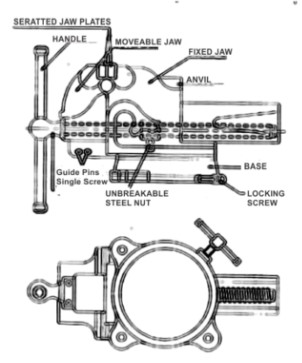

Please Refer The 2nd Image for Size
Width of jaws in mm – 125
Opening in jaws in mm – 120
Depth of jaws in mm – 36
Height : 90
Width : 195
Length : 365
Weight Approx.U301 in Kgs : 11
Weight Approx. in Kgs. U301S : 12
UNIQ DRILL VICE U328-4
Product code: UNIQ/DVG-4
264.50 SR
Brand : UNIQ MACHINES’S BENCH VICE
Type : Mechanics Bench Vice, Fixed Base Code No. U328
Model : U328
Code: U328
SIZE : 4 inch.
Please Refer The 2nd Image for Size
Width of jaws in mm – 100
Opening in jaws in mm – 100
Depth of jaws in mm – 25
Height : 72
Width : 160
Length : 320
Weight Approx.U301 in Kgs : 6.5
Weight Approx. in Kgs. U301S : 10

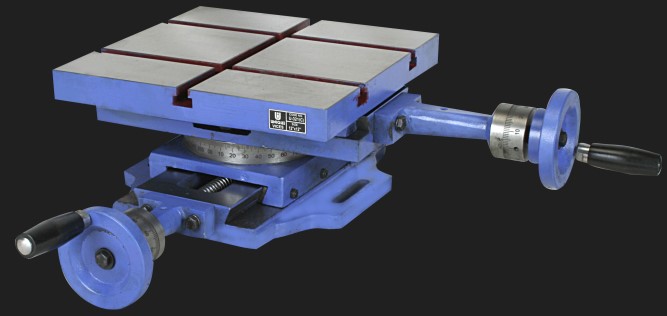

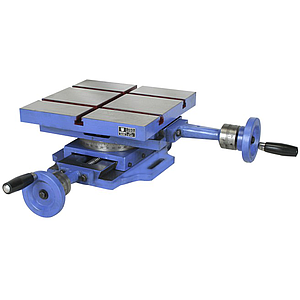

UNIQ COMPOUND SLIDING TABLE - 400x400MM
Product code: UNIQ/CSV-400
4,140.00 SR
Brand Name: UNIQUE
Type: UNIQ COMPOUND SLIDING TABLES WITH CALIBRATED WHEEL & SWIVELING TABLE
Size: 16 x 16 inches
Table Size in mm: 400*400
Height in mm: 170
Length overall in mm:620
T. Slot size in mm: 16
Travel Both ways in mm: 300
Width of Jaws in mm: - nil
Calibration: 90°
Weight: 80 Kg
Features:
• Unique Precision Compound Sliding Tables are meant for accurate boring, drilling grinding and milling operations.
• Grey iron casting properly machined and grinded with a Unique process provides accuracy well within 0.01mm/100mm tolerance.
• Toughened lead screw having acme threads running smoothly in phosphorus Bronze Nut.
• Dovetail slides have adjustable steel ribs for smooth running and adjustment.
