Products
MEP Cobra 350-CUB Aluminum Sawing Machine
![MEP Cobra 350-CUB Aluminum Sawing Machine](/web/image/product.template/50889/ximage,qunique=43962bd.pagespeed.ic.J-4H2keMs2.jpg)
Thomas TMS90 Bending Machine Made in italy
Product code: TMS/TMS90
17,250.00 SR
Technical Data :-
Electric Motor : kW 1, 1
Distance between rolls : mm170
Capacity on alu profiles : mm40x8
Steel circular tubes : mm 47, 8 (FE360)
Voltage : Volt 220-400
Frequency : Hz 50-60
Stand
Package Dimension
• 760 x 710 x 1430mm
Thomas Aluminum 450G Cutting Machine Made in Italy
![Thomas Aluminum 450G Cutting Machine Made in Italy](/web/image/product.template/48384/ximage,qunique=07b94d3.pagespeed.ic.FwqwqSLtBg.jpg)
Product code: TMS/450G
11,960.00 SR
Brand: Thomas
Model Number: Thomas 450G
Type: Circular Saws
Specification: 4500 Rpm/ 7.5 Hp/3 Phase / 220V
Power Source: Corded Electric
Made in Italy
Vice and cutting head in cast-iron providing high stability and vibration free cutting, motor guard, device for parallel cut, quick lock vice. Severe tests on mechanical tolerances, electric installation and final performance test.
Infismac Manual Mini Milling Machine Made In Italy
![Infismac Manual Mini Milling Machine Made In Italy](/web/image/product.template/36054/ximage,qunique=f5c39db.pagespeed.ic.HZKd_xdZsD.png)
Product code: MAC/MINICOPY
11,458.60 SR
Brand : INFISMAC
Cutter Motor : 0, 75 Hp - 0,55 Kw - 220/380 V - 2800 Rpm
Cutter Spindle Revs : 12.000 Rpm
Cutter Tang Diameter: ɸ 8
Vertical Traverse : 100 mm
Distance of Co/Let From Table : 160 mm
Lengthwise Traverse : 190 mm
Cross Traverse : 100 mm
Air Pressure: 6.8 Bar
Weight With Bed : 80 kg
Metal Bed Height Of Worktable From Floor: 900 mm
Max Height On Levers : 1660 mm
Bed Width: 530 mm
Bed Depth: 410 mm max
Made in Italy
Manual Milling Pneumatics Machine-Made In Italy
Product code: MAC/FC/3P
13,411.30 SR
Brand: Infismac
Type : Manual Milling Machine
Motor Cutter: Hp 1.5 220/380 V
KW/Volt/Freq : 1.1 Kw / 400 V / 50Hz
Phase : 3 Phase
Speed Cutters: 12,000 Rpm.
Shaft Cutter Diameter: ø 8
Air Pressure : 6 / 8 bar
Stroke Transversal: 125 mm
Stroke Vertical : 130 mm
Stroke Longitudinal : 400 mm
Weight : 150 kg
Overall Dimension : 70 x 160 x 190 mm
Made in Italy
Main Features :
• Pantograph with vertical milling unit,
• Steel base
• Work base in aluminum
• Equipped with vices
• Pneumatic lubrication.
Infismac CM70 Bending Machine Made in Italy
![Infismac CM70 Bending Machine Made in Italy](/web/image/product.template/36045/ximage,qunique=9f50163.pagespeed.ic.d1qpDI_EAj.jpg)
Product code: MAC/CM/70
17,250.00 SR
Bending Machine For Forming Arcs And Circles Simultaneously
Bending Operations By Means of 2* Motogears
Overall Dimensions 71*70*737cm
Weight 210kg

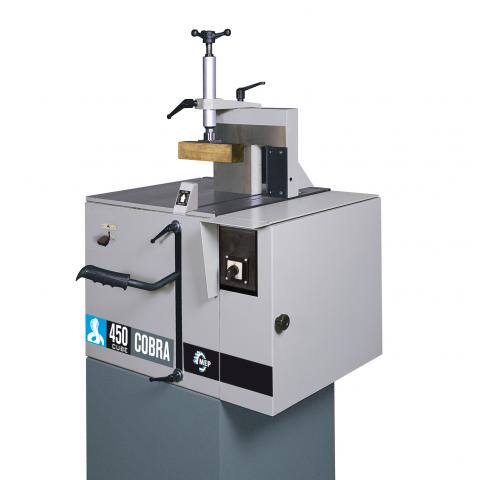

Cobra MEP Type 450 Aluminum Cutting Machine
![Cobra MEP Type 450 Aluminum Cutting Machine](/web/image/product.template/36030/ximage,qunique=2c7b922.pagespeed.ic.lQYItV8Hg2.jpg)
Product code: MAC/450
10,488.00 SR
Brand : MAC Cobra
Type : Metal-Cutting Saws
Model : Cobra 450 Cube
Technical Data
Cutting Speed : 2,800 Rpm
Asynchronous : 3-Phase ( 1-Speed Spindle )
Air Consumption for Vice : 1.37 NI ( Only for MA Version )
Working Pressure : 6 Bar (only for MA Version )
Coolant Capacity : 2 Lt
Voltage : 220-380V/60HZ
Power : 2.2 Kw
Disc Blade
External Disc Día : 450 mm
Internal Hole Día : 32 mm
Blade Thickness : 4 mm
Noise Levels
Without Cutting : 84 DBA
Cutting Material : 90 DBA
Base Height/Length : 98 * 71 Cm
Over All H*W*L : 153 * 80 * 100 Cm
Weight : 150 Kg
MADE IN ITALY
Cobra MEP 350 Aluminum Sawing Machine - Made in Italy
Product code: MAC/350
16,100.00 SR
Technical data
0° 120 mm 105 mm 180 x 70 mm 80 mm
+ 45° 110 mm 95 mm 135 x 60 mm 55 mm
- 45° 120 mm 100 mm 135 x 60 mm 55 mm
Max. vice opening 180 mm
Circular blade size HM 350 x 32 x 3.4 mm
Blade motor power 2.2 Kw - Single-phase | 1.5 / 2.2 Kw - Three-phase
Blade rotation speed 3400 rpm - 1 Speed | 1700 / 3400 rpm - 2 Speeds

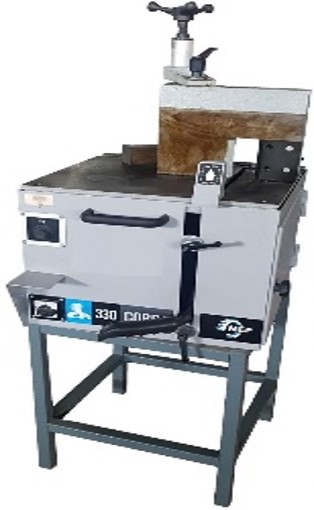

Aluminum Cutting Saw Machine Made In Italy
![Aluminum Cutting Saw Machine Made In Italy](/web/image/product.template/36025/ximage,qunique=afcc9f1.pagespeed.ic.4hI_4IQQfs.jpg)
Product code: MAC/330
6,440.00 SR
Brand: Cobra
Model Number: Cobra 330
Type: Metal-Cutting Saws
Motor Speed : 2800 Rpm
Blade Size: 330 × 32 × 3.6 mm
Power : 1.5 Kw
Voltage: 220-380V/60Hz - 3 Phase
Power Source: Corded Electric
Weight: 85 Kg
Made In Italy
LGF Scriba Pneumatic Corner Crimping Machine
![LGF Scriba Pneumatic Corner Crimping Machine](/web/image/product.template/35209/ximage,qunique=1a4ae6f.pagespeed.ic.D4tYpWx-5R.jpg)
Product code: LGF/SCRIBA
42,550.00 SR
PNEUMATIC CRIMPING MACHINE FOR CORNERS JUNCTION
Technical Data Machine suitable for crimping of all aluminium profile ranges
Crimping strenght 3500 Kgp
Punches stroke 12 mm
Max. crimping hight 120 mm
Backing block stroke 120 mm
Side adjusting range 40 mm
Working pressure 7 bar
Max. working pressure 10 bar
Overall dimensions: 1070x1250x1170 mm
Weight 310 Kg
Standard Equipment Nr. 2 crimping tools 3 mm
Nr. 2 crimping tools 5 mm
Nr. 2 crimping tools 7 mm
Frame support arms set
Nr. 1 Foot pedal
Nr. 1 Profile backing block 30 mm
Nr. 1 Vertical pneumatic clamp
Optionals Special crimping tools set
