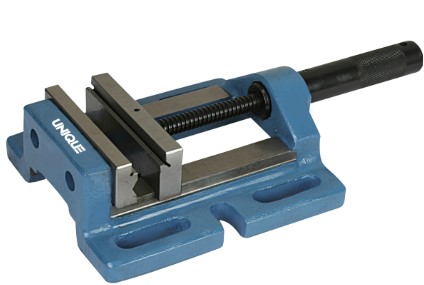

UNIQ DRILL VICE -3''-U306
Product code: UNIQ/DVH-3
201.25 SR
Brand Name : Unique
Type : Heavy Duty Drill Vice – U306
Size: 3” inches
Width Of Jaws : 75 mm
Opening Of Jaws : 100 mm
Depth Of Jwas : 40 mm
Overall L*B*H : 70*250*130 mm
Slot size in mm: 10 Millimeter
Weight : 5.000 Kg
Features
• Drill Vice Heavy , body close grain cast iron.
• Special steel ground jaws provided with "V" grove for holding round jobs.
• Lead screw of special steel.
• Large base for rigid mounting on table is provided with "T" slots for griping on the Drilling Machine Table.

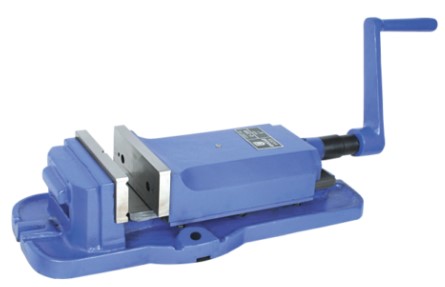

UNIQ MILLING MACHINE VICE - U309S-8''
Product code: UNIQ/MMV-8
2,645.00 SR
Brand Name : Unique
Type : Super Milling Vice (Bridge Port Type) – U309S
Size: 8” inches
Width Of Jaws : 200 mm
Opening Of Jaws : 200 mm
Depth Of Jaws : 65 mm
Length overall in mm : 160
Height overall : 120
Width overall : 310
Slot size in mm: 20 Millimeter
Weight : 66 Kg
Features
• Drill Vice Heavy , body close grain cast iron.
• Special steel ground jaws provided with "V" grove for holding round jobs.
• Lead screw of special steel.
• Large base for rigid mounting on table is provided with "T" slots for griping on the Drilling Machine Table.
• the Swivel base is Graduated fully thought 360°
• Fitted with Thrust Bearing for Smooth Movement.
• Sturdy & accurately made machine vices from graded casting.
• Fine acme thread screw.
• Jaws are made of special steel properly hardened, fixed jaw is provided with vertical & horizontal ‘V’ groove to hold the round job firmly.
• The swivel base is graduated fully through 360º.
• Vice can be converted from swivel base to fix by removing the base.
• Quick alignment to machines through longitudinal slot provided in base & body.
• Crank handle is made of unbreakable steel provided with a spring loaded mechanism providing positive grip.
• Body is provided with water channel.
• Depth of jaws is more to hold heavy jobs.
• Supplied with Stopper for Fast Production.
UNIQ MILLING MACHINE VICE - U309S-4''
Product code: UNIQ/MMV-4
1,150.00 SR
Brand Name : Unique
• Drill Vice Heavy , body close grain cast iron.
• Special steel ground jaws provided with "V" grove for holding round jobs.
• Lead screw of special steel.
• Large base for rigid mounting on table is provided with "T" slots for griping on the Drilling Machine Table.
• the Swivel base is Graduated fully thought 360°
• Fitted with Thrust Bearing for Smooth Movement.
• Sturdy & accurately made machine vices from graded casting.
• Fine acme thread screw.
• Jaws are made of special steel properly hardened, fixed jaw is provided with vertical & horizontal ‘V’ groove to hold the round job firmly.
• The swivel base is graduated fully through 360º.
• Vice can be converted from swivel base to fix by removing the base.
• Quick alignment to machines through longitudinal slot provided in base & body.
• Crank handle is made of unbreakable steel provided with a spring loaded mechanism providing positive grip.
• Body is provided with water channel.
• Depth of jaws is more to hold heavy jobs.
• Supplied with Stopper for Fast Production.
Unique 8''Rotary Milling Table U336
Product code: UNIQ/ERT-HV8
1,092.50 SR
Brand Name : UNIQUE
Type : UNIQ Rotary Milling Table – Code No.U336
Size: 8’’ inches
Día of Table in mm: 200
Table Slot in mm: 12
Center Bush Bore: MT No.-3
Worm & Gear Ratio: 1.72
Calibration: 2Min
Vertical U335 & U337: 290
Weight : 28 Kg
Features:
• The Table & Body manufacturered from close grain shock resisting cast iron.
• The body is provided with two bolt slots in Code No. U335 & U337 for mounting on machine .
• Table vertically & Horizontally.
• Provided with quick & precise disengagement of worm drive.
• Efficient lock provided.
• End play in wormshaft is adjustable.
• An eccentric sleeve with thrust Bearing races in the worm shaft.
• Provision for fine zero adjustment when setting work piece. Works as an index center in the vertical position as well as convential Rotary Table graduated 360º Indexing Plate is provided to enable the user to convert quickly to use indexing plates for fast setting.
• Direct reading to 2 minutes for size 6", 8" & 10" on hand wheel scale.
• Direct reading to 1 minute for size 12", 15",18" & 20" in hand wheel scale.
• High accuracy, easy reading of all dais clear & functional arrangement of all operating elements sturdy yet simple good looking practical design. These are widely used for circular cutting, angle setting, boring & spot facing with a milling machine.
ACCURACY
• Maximum error 2 minutes of circular division using hand wheels.
• Table flat to within 0.005mm/100mm.
• Working surface rotates in its own plane to within 0.01 mm.
• Horizontal & vertical supporting surface square within 0.01mm/100mm..
• Centre bush bore is true to table axis within 0.008 mm.
• Maximum parrillas error through 360º rotation of table is 0.001mm.
Unique 6.5” Dividing Head Complete Set U351
Product code: UNIQ/EBS-6.5
5,290.00 SR
Brand : Unique
Type: Dividing Head Complete Set – U351
Size: 6.5 Inches
Gear Worm Ratio: 1:40
Centre Height : 165 mm
Spindle Bore : 38 mm
Spindle Taper: 9ᴼ
Overall Height Vertical Position : 310 mm
Length Of Base : 270 mm
Width Of Base : 170 mm
Indexing Plates
Side A : 7,13,16,19,20,23,27,31,33,39,47,53
Side B : 9,11,15,17,18,21,25,29,37,41,49,51
Set of Gears : 24,24,28,32,36,40,44,48,56,64,72,86,100 Teeth D.P 12
Weight : 125 Kg
Features
• Unique Dividing heads are carefully designed for tool Rooms as well as for production purpose .
• They are suitable for indirect and differential indexing as well as for spiral and cam milling operations on universal milling machine.
• Unique dividing heads are manufactured from Selected high quality material with Superior workmanship.
Unique 5.5” Dividing Head Complete Set U351
Product code: UNIQ/EBS-5.5
4,830.00 SR
Brand : Unique
Type: Dividing Head Complete Set – U351
Size: 5.5 Inches
Gear Worm Ratio: 1:40
Centre Height : 142 mm
Spindle Bore : 32 mm
Spindle Taper: 9ᴼ
Overall Height Vertical Position : 230 mm
Length Of Base : 240 mm
Width Of Base : 150 mm
Indexing Plates
Side A : 11,16,19,25,37,41,49
Side B : 13,17,18,27,33,43,51
Set of Gears : 24,24,28,32,36,40,44,48,56,64,72,86,100 Teeth D.P 14
Overall Package Weight : 150 Kg
Features
•Unique Dividing heads are carefully designed for tool Rooms as well as for production purpose .
•They are suitable for indirect and differential indexing as well as for spiral and cam milling operations on universal milling machine.
•Unique dividing heads are manufactured from Selected high quality material with Superior workmanship.
UNIQ DRILL VICE -8''-U306
Product code: UNIQ/DVH-8
476.10 SR
Brand Name : Unique
Type : Heavy Duty Drill Vice – U306
Size: 8” inches
Width Of Jaws : 200 mm
Opening Of Jaws : 200 mm
Depth Of Jaws : 60 mm
Overall L*B*H : 430*270*100 mm
Slot size in mm: 13 Millimeter
Weight : 23 Kg
Features
• Drill Vice Heavy , body close grain cast iron.
• Special steel ground jaws provided with "V" grove for holding round jobs.
• Lead screw of special steel.
• Large base for rigid mounting on table is provided with "T" slots for griping on the Drilling Machine Table.
DRILL VICE HEAVY DUTY 0306
Product code: UNIQ/DVH-6
333.50 SR
Brand Name : Unique
Type : Heavy Duty Drill Vice – U306
Size: 6” inches
Width Of Jaws : 150 mm
Opening Of Jaws : 180 mm
Depth Of Jwas : 50 mm
Overall L*B*H : 38*23*9 Cm
Slot size in mm: 13 Millimeter
Weight : 20 Kg
Features
• Drill Vice Heavy , body close grain cast iron.
• Special steel ground jaws provided with "V" grove for holding round jobs.
• Lead screw of special steel.
• Large base for rigid mounting on table is provided with "T" slots for griping on the Drilling Machine Table.
UNIQ DRILL VICE -4''-U306
Product code: UNIQ/DVH-4
201.25 SR
Brand Name : Unique
Type : Heavy Duty Drill Vice – U306
Size: 4” inches
Width Of Jaws : 130 mm
Opening Of Jaws : 100 mm
Depth Of Jaws : 45 mm
Overall L*B*H : 300*160*75 mm
Slot size in mm: 10 Millimeter
Weight : 7.500 Kg
Features
• Drill Vice Heavy , body close grain cast iron.
• Special steel ground jaws provided with "V" grove for holding round jobs.
• Lead screw of special steel.
• Large base for rigid mounting on table is provided with "T" slots for griping on the Drilling Machine Table.
UNIQ DRILL VICE U328-5
Product code: UNIQ/DVG-5
345.00 SR
Brand : UNIQ MACHINES’S BENCH VICE
Type : Mechanics Bench Vice, Fixed Base Code No. U328
Model : U328
Code: U328
SIZE : 5 inch.
Please Refer The 2nd Image for Size
Width of jaws in mm – 125
Opening in jaws in mm – 120
Depth of jaws in mm – 36
Height : 90
Width : 195
Length : 365
Weight Approx.U301 in Kgs : 11
Weight Approx. in Kgs. U301S : 12
UNIQ DRILL VICE U328-4
Product code: UNIQ/DVG-4
264.50 SR
Brand : UNIQ MACHINES’S BENCH VICE
Type : Mechanics Bench Vice, Fixed Base Code No. U328
Model : U328
Code: U328
SIZE : 4 inch.
Please Refer The 2nd Image for Size
Width of jaws in mm – 100
Opening in jaws in mm – 100
Depth of jaws in mm – 25
Height : 72
Width : 160
Length : 320
Weight Approx.U301 in Kgs : 6.5
Weight Approx. in Kgs. U301S : 10

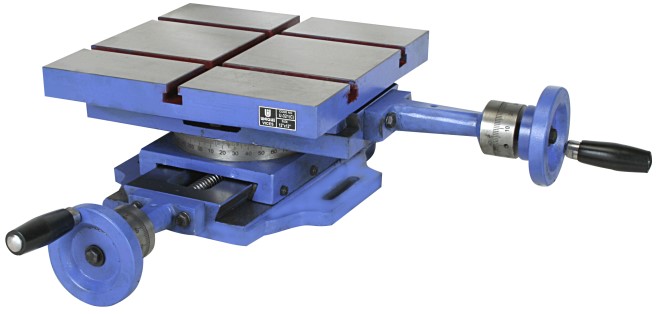

UNIQ COMPOUND SLIDING TABLE - 400x400MM
Product code: UNIQ/CSV-400
4,140.00 SR
Brand Name: UNIQUE
Type: UNIQ COMPOUND SLIDING TABLES WITH CALIBRATED WHEEL & SWIVELING TABLE
Size: 16 x 16 inches
Table Size in mm: 400*400
Height in mm: 170
Length overall in mm:620
T. Slot size in mm: 16
Travel Both ways in mm: 300
Width of Jaws in mm: - nil
Calibration: 90°
Weight: 80 Kg
Features:
• Unique Precision Compound Sliding Tables are meant for accurate boring, drilling grinding and milling operations.
• Grey iron casting properly machined and grinded with a Unique process provides accuracy well within 0.01mm/100mm tolerance.
• Toughened lead screw having acme threads running smoothly in phosphorus Bronze Nut.
• Dovetail slides have adjustable steel ribs for smooth running and adjustment.
UNIQ COMPOUND SLIDING TABLE - 300x300mm
Product code: UNIQ/CSV-300
2,185.00 SR
Brand Name: UNIQUE
Type: UNIQ COMPOUND SLIDING TABLES WITH CALIBRATED WHEEL & SWIVELING TABLE
Size: 12 x 12 inches
Table Size in mm: 300*300
Height in mm: 150
Length overall in mm: 460
T. Slot size in mm: 13
Travel Bothways in mm: 225
Width of Jaws in mm: - nil
Calibration: 90°
Weight: 44 Kg
Features:
• Unique Precision Compound Sliding Tables are meant for accurate boring, drilling grinding and milling operations.
• Grey iron casting properly machined and grinded with a Unique process provides accuracy well within 0.01mm/100mm tolerance.
• Toughened lead screw having acme threads running smoothly in phosphorus Bronze Nut.
• Dovetail slides have adjustable steel ribs for smooth running and adjustment.
UNIQ COMPOUND SLIDING TABLE - 250x250mm
Product code: UNIQ/CSV-250
1,380.00 SR
Brand Name : Unique
Type : Super Milling Vice (Bridge Port Type) – U309S
Size: 10 x 10 inches
Table Size in mm: 130
Height in mm: 130
Length overall in mm: 350
T. Slot size in mm: 13
Travel Bothways in mm: 125
Width of Jaws in mm: One Way
Weight : 24 Kg
Features:
• Unique Precision Compound Sliding Tables are meant for accurate boring, drilling grinding and milling operations.
• Grey iron casting properly machined and grinded with a Unique process provides accuracy well within 0.01mm/100mm tolerance.
• Toughened lead screw having acme threads running smoothly in phosphorus Bronze Nut.
• Dovetail slides have adjustable steel ribs for smooth running and adjustment.

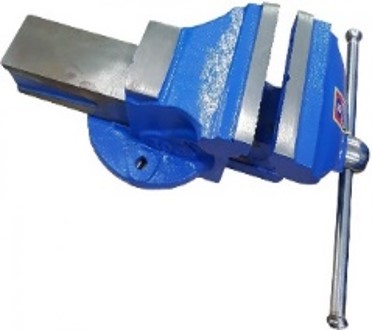

8" (200MM) BENCH VICE RECORD TYPE
Product code: UNIQ/BV200
872.85 SR
Brand : UNIQ MACHINES’S BENCH VICE
Type : Mechanics Bench Vice, Fixed Base Code No. U301S
Model : U301S
Code: 301S
SIZE : 8 inch.
Please Refer The 2nd Image for Size
Width of jaws in mm – 200
Opening in jaws in mm – 240
Depth of jaws in mm – 110
Height : 235
Width : 220
Length : 535
Weight Approx.U301 in Kgs : 38
Weight Approx. in Kgs. U301S : 44

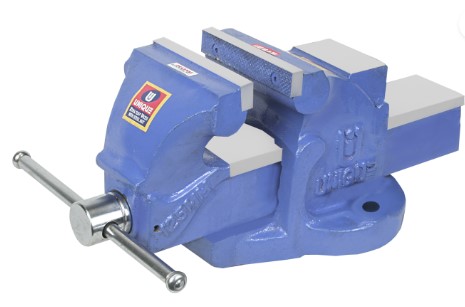

UNIQ BENCH VICE (RECORD TYPE) -6'' (150 mm)
Product code: UNIQ/BV150
586.50 SR
Brand : UNIQ MACHINES’S BENCH VICE
Type : Mechanics Bench Vice, Fixed Base Code No. U301S
Model : U301S
Code: 301S
SIZE : 6’’
Please Refer The 2nd Image for Size
Width of jaws in mm – 150
Opening in jaws in mm – 170
Depth of jaws in mm – 92
Height : 225
Width : 175
Length : 470
Weight Approx.U301 in Kgs: 23.5
Weight Approx. in Kgs. U301S: 27

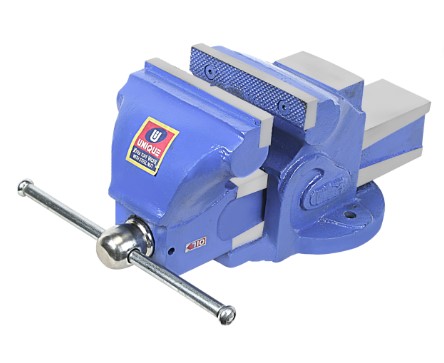

UNIQ BENCH VICE (RECORD TYPE) -5'' (125 mm)
Product code: UNIQ/BV125
333.50 SR
Brand: Unique
Type: Mechanics Bench Vice, Fixed Base Code No. U301
Model: U301S
Code: 301
Size: 5’’
Please Refer The 2nd Image for Size
Width of jaws in mm – 125
Opening in jaws in mm – 160
Depth of jaws in mm – 82
Height: 185
Width: 170
Length: 450
Weight Approx.U301 in Kgs: 18
Weight Approx. in Kgs. U301S: 21
UNIQ BENCH VICE (RECORD TYPE) -4'' (100 mm)
Product code: UNIQ/BV100
241.50 SR
Brand: Unique
Type: Heavy-duty drill vice
Size: 4” inches
Width Of Jaws: 100 mm
Opening of Jaws: 130 mm
Depth of Jwas: 55 mm
Overall L*W*H : 35*16*16 Cm
Weight: 20 Kg
Features
• Unique Mechanic’s Bench Vices are made of closed-grain cast iron.
• Provided with unbreakable steel nut.
• Serrated Jaws of special steel properly tempered to ensure a strong grip and are interchangeable.
• Square thread lead screw of alloy steel is matched properly with the nut for a long and durable life.
• Swivel Base rotates 360º and can be locked firmly at any point.

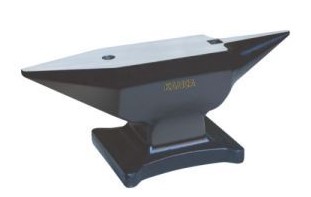

ANVIL -75KG
Product code: UNIQ/ANVIL75
1,265.00 SR
Brand Name: Uniq – Anvil
Type : Blacksmith Anvil
Material : Iron
Width of Face : 4.92”
Length of Face : 17.33”
Pritchel Hole Diameter : 23 mm
Square Hardy Hole : 25 mm
Total L*W*H : 61*25*27 Cm
Weight: 75 Kg
Unique Drill chuck with key, 20mm-B22 1.5MM TO 20MM
Product code: UNIQ/20-B22
161.00 SR
Brand : Unique - Sharp
Type : Drill Chuck ( 9100 Drill Chucks With Key Heavy Duty )
Model : B-22
Code: 50120065
Capacity : 5 – 20 mm
Please Refer The 2nd Image for Size
A – 110
B – 88
C – 67
Weight : 1.335 Kg
