Niuli Diesel Forklifte Capacity 3000KG Lift H-4500MM
Product code: NIULI/CPCD30-4.5
87,400.00 SR
Specifications:
General
1 Model CPC30/CPCD30
2 Power Type Diesel/GAS
3 Rated capacity Kg 3000
4 Load center mm 500
Charactertic 5 Lifting height mm 3000
6 Fork size mm 1070*122*40
7 Mast Tilt Angle Deg 6°/12°
8 Front Overhang(Wheel center to fork face) mm 500
9 Ground Clearance(Bottom Of Mast) mm 126
10 Overall Dimension Overall length(with/without fork) mm 3790/2700
11 Overall width mm 1230
12 Mast lowered height mm 2105
13 MastExtended height(with backrest) mm 4110
14 Overhead guard height mm 2140
15 Turning Radius(outside) mm 2415
16 Min. intersecting aisle mm 2500
Performance 17 Speed Travel(Full/Empty load) km/h 18/19
18 Lifting(Full/Empty load) mm/s 460/540
19 Max.Gradeability % 20
Chassis 20 Tire Front 28x9-15-12PR
21 Rear 6.50-10-10PR
22 Wheelbase mm 1650
23 Self Weight kg 4280
Transmission 24 Battery Voltage/Capacity V/Ah 12/120
25 Engine Model C240 C490BPG
26 Manufacturer ISUZU XinChang
27 Rated output/r.p.m kW/rpm 34.3/2500 34.3/2500
28 Rated torque/r.p.m Nm/rpm 137.7/1800 160/1800-2000
29 No. of cylinder 4 4
30 Bore x Stroke mm 86x102 90x105
31 Displacement cc 2369 2670
32 Fuel Tank capacity L 60 60
33 Transmission Machanical/Hydraulic
34 Operation Pressure for Attachment Mpa 17.5
Remor Steel Cutting Horizontal Bandsaw Machine Model#RH-500
Product code: REMOR/RH-500
69,000.00 SR
Model NO : CH-500
Precision : High Precision
Certification : CE, ISO 9001, OHSAS18001
Condition : New
Blade Motor : 4KW (5.5HP)
Blade Size : 5450X41X1.3mm
Factory Inspection : Welcome
Transport Package : Plywood Case or as Required
Production Capacity : 10, 000sets/Year
Type : Band Sawing Machine
Horizontal Band Sawing Machine Type : Double Column
Saw Feed Direction : Horizontal
Track : Linear
Controlling Mode : Hydraulic Semi-automatic
Automatic Grade : Semiautomatic
Semi-automatic operation, easy to understand and use control panel;
★ Hydraulic downfeed rate is adjustable and controlled by stepless regulating valve;
★ During cutting process, saw frame quick approach to workpiece and slow down downfeed rate before blade touch the workpiece;
★ The saw machine uses roller bearings and carbide blocks to guide the blades which extend the blade life.
TECHNICAL SPECIFICATIONS:
MODEL RH-500
Cutting Capacity 0° round φ500mm φ19-2/3"
0° rectangular 500mm W x 500mm H 19-2/3" W x 19-2/3" H
Drive Capacity Blade Motor 4.0KW 5.5HP
Hydraulic Motor 0.75KW
Coolant Pump 0.06KW
Blade Speed 18/30/50/70m/min 59, 98, 164, 230fpm
Blade Size 5450x41x1.3mm
Workpiece Clamping Hydraulic Vise
Blade Tensioning Manual
Main Drive Wormwheel Drive
Table Height 510mm
Machine Weight 1820kg
Machine Size (LxWxH) 2700x1250x1850mm
Meiwa MSR7 Vibrator Roller Compactor Diesel Engine-Japan
Product code: KUB/MSR7M
64,400.00 SR
Model: MSR7
Operating Weight: 737kg
Shipping Weight: 695kg
Overall W*H*L : 702mm*1105mm *2390mm
Centrifugal Force :20.0kN (2000kgf)
Water Tank Capacity : 42ltr
Engine :"Kubota" EA300-ENB1 water-cooled Diesel max. output 7.0ps
Fuel :Diesel
Starting System : Electric Starter
Made in Japan
Meiwa MSR5KM Vibrator Roller Compactor Diesel Engine-Japan
Product code: KUB/MSR5KM
56,925.00 SR
Model:MSR5KM
Operating Weight: 598kg
Shipping Weight: 560kg
Overall W*H*L : 616mm *1060mm *2320mm
Centrifugal Force : 11 .8kN ( 1200kgf)
Water Tank Capacity : 38 liter
Engine :"Kubota" EA300-ENB1 water-cooled Diesel max. output 7.0ps
Fuel :Diesel
Starting System : Electric Starter
Made in Japan
Kitoma Kuk Dong 10Tx6m Electric Chain Hoist 4 Moves Made In Korea
Product code: KKD/E10-KDM2
49,593.75 SR
Brand: KUKDONG
10 TON x 11.2 MM x 6 M
220V/3PH/60HZ
Capacity: 10 Ton
Traversing Speed: 12 Meter
4 Moves
Made In Korea

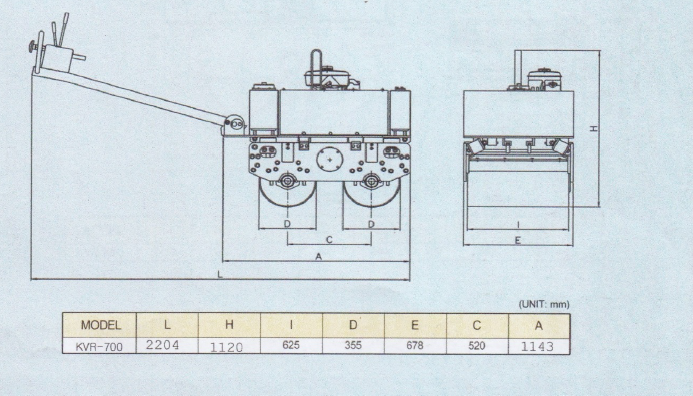

KVR-700 Vibratory road roller engine :Robin DY41DS.
Product code: KK/KVR-700
48,760.00 SR
Model: KVR-700
Vibratory road roller
Water Capacity: 30l.
Engine: Robin DY-41.
Grade Ability: 25º.
Drive Unit: Gear Pumps.
Vibrating System: Eccentric.
Made in Korea

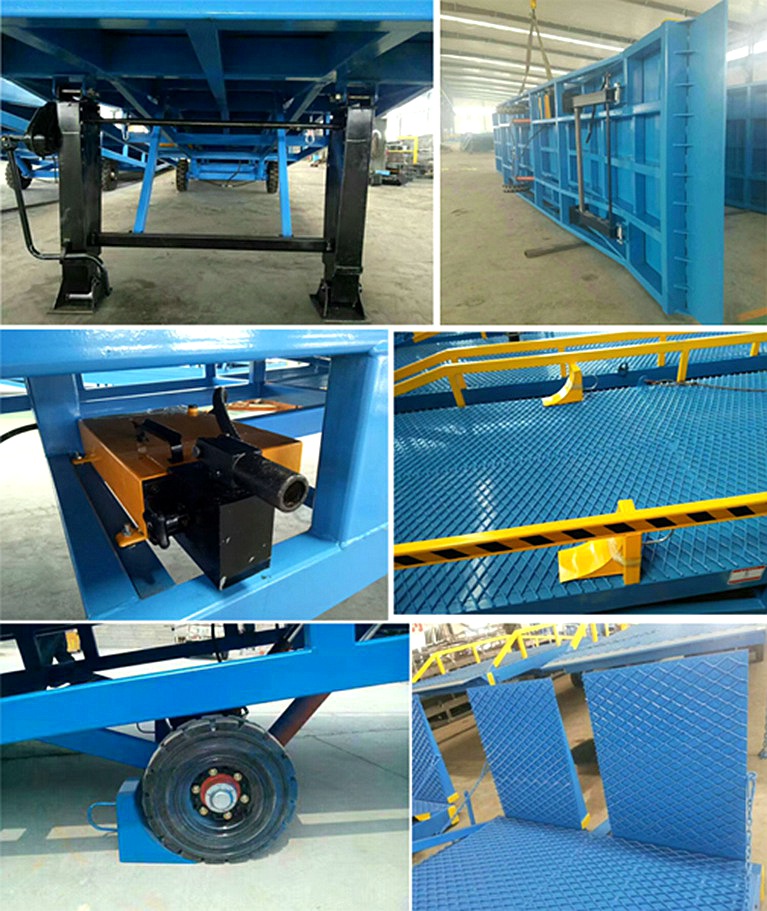

Sunshine Movable Dock Ramp Capacity:10T
Product code: SUNSHINE/DCQY-10
44,275.00 SR
Main Features:● Heavy Load Capacity
● Height Adjustable Support Legs
● Manual Control Hydraulic System
Specifications:
Model DCQY-10
Overall Size 11100mm( L）*2000mm（W）*1100mm（H）
Load Capacity 10T
Deck Slope length: 7000mm, plane length: 3000mm, front foot plate length: 400mm, back foot plate length: 700mm Upper: 8mm High-strength Steel Nets
Bottom: 4mm High-strength Steel Plate
Platform Framework 160×80×5mm Rectangular Tubes, 5 pcs main beam
Vice Beam 100×50x4mm Rectangular Tubes
Oil Cylinder Φ80mm ×Φ50mm
Adjustable Range 1100-1800mm
Oil Hose 32 MPa High-pressure Double Steel Nets Rubber Hose
Seal Ring VALQUA Import Seal Element
Guardrail Height 220mm, 40×60×3mm Rectangular Tubes
Front Lip 400mm length, 16mm Steel Plate
Tires HC-YDQ10T:600-9 Solid Tires
Lifting Mode Manual Lifting or Manual&Electric Lifting or manual&Battery Lifting
Support Legs Mechanical adjustable legs, route 600mm
Color Optional, electrostatic spray
Weight 2.75 Ton
Description:
Mobile Dock Ramp is a special auxiliary equipment for loading and unloading of goods rapidly. Its height adjustment feature allows forklifts and other moving vehicles to enter into the truck or container directly and handle the goods. The dock ramp is controlled by manual hydraulic system, so only one person could operate it conveniently. It enables you to reduce the amount of labor and raise working efficiency.

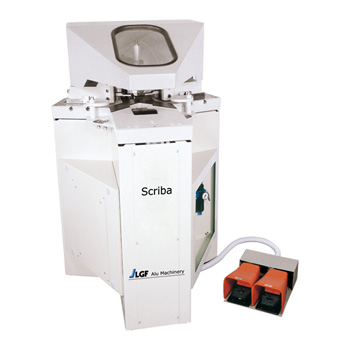

LGF Scriba Pneumatic Corner Crimping Machine
Product code: LGF/SCRIBA
42,550.00 SR
PNEUMATIC CRIMPING MACHINE FOR CORNERS JUNCTION
Technical Data Machine suitable for crimping of all aluminium profile ranges
Crimping strenght 3500 Kgp
Punches stroke 12 mm
Max. crimping hight 120 mm
Backing block stroke 120 mm
Side adjusting range 40 mm
Working pressure 7 bar
Max. working pressure 10 bar
Overall dimensions: 1070x1250x1170 mm
Weight 310 Kg
Standard Equipment Nr. 2 crimping tools 3 mm
Nr. 2 crimping tools 5 mm
Nr. 2 crimping tools 7 mm
Frame support arms set
Nr. 1 Foot pedal
Nr. 1 Profile backing block 30 mm
Nr. 1 Vertical pneumatic clamp
Optionals Special crimping tools set
Kuk Dong Electric Wire Rope Hoist 5T,12M Made In Korea
Product code: KKD/E5-KDWM-P5
41,618.50 SR
Brand: KUKDONG
Capacity: 5 Ton
Lift (m): 6, 12 Meter
Made In Korea

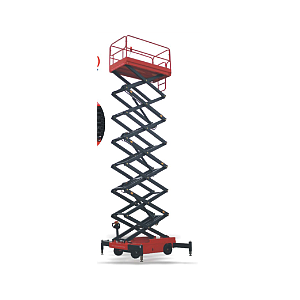

MOBILE SCISSOR LIFT LOAD CAP: 500KG MAX.PLATFORM Ht:14MTR
Product code: PRO LIFTERS/SJY0.5-14
41,400.00 SR
Model : SJY0.5-14
Type : Mobile scissor lift
Capacity : 500 kg
Min Height : 14000mm
Max Height : 1912mm
working platform size: 2150*1140
lift moter : 48/3
Drive Moter : 48/3.5
Voltage : 48
driving speed :3.5-4.5
max climb capacity: 10-15
battery : 4*12v/110Ah
charger : 48/10
overall length : 2558
overall width : 1365
overall height : 2912
Net Weight : 2860kg

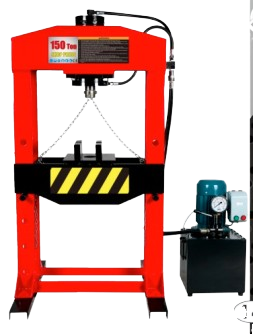

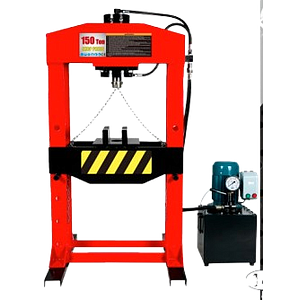

150 TON ELECTRICAL SHOP PRESS TL0502-4
Product code: PINGHU/TL0502-4
41,262.00 SR
Brand : Pinghu
Type : Electrick shop press
Model : TL0502-4
Capacity Ton : 150
Pressure : 38.7mm
Dia : 1600*720*2350
Net Weight : 1100

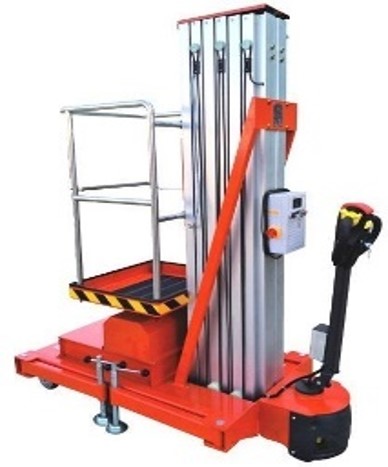

Aluminum Aerial Work Platform Man Lifter ( Single Mast, Battery Type With Driving System )
Product code: PIONEER RISERS/GTWY9-125A
33,925.00 SR
Brand: Pioneer Risers
Model: GTWY9-125 A
Capacity : 125 Kg
Max. Platform Height : 9000 mm
Working Height : 10700 mm
Ground Clearance : 50 mm
Working Platform Size : 600 mm x 550 mm
Unfolding Size : 1780 mm x 1780 mm
Power AC/DC : 220V / 24 V
Accumulator (V/AH): 2x12V / 70AH
Charger (V/A): 24 V / 10 A
Lifting Motor AC / DC : 220V / 0.75Kw – 24V / 0.8 Kw
Overall Length / Width : 1700 mm / 850 mm
Overall Height : 1980 mm
Weight AC / DC : 380 / 390 Kg
Stable ascending and descending. Masts made of aluminum. Chains tightly connected.
Safe operation. Four supporting rods prevent operators from leaning.
Easy to use. Only one person can push forward. When folded, it can enter General standard size door or corridor, as well as electrical lift of buildings.
Operation system on the lift platform and emergency stop button on the base Plate to ensure safety.

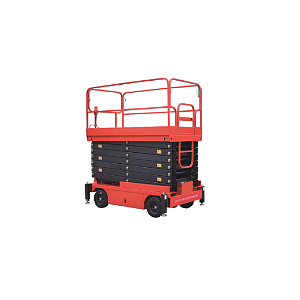

MOBILE SCISSOR LIFT LOAD CAP: 500KG MAX.PLATFORM Ht:11MTR 1680KG
Product code: PRO LIFTERS/SJY0.5-11
33,350.00 SR
Model : SJY0.5-11
Type : Mobile sciessor lifter
Capacity : 500 kg
Min Height : 11000mm
Max Height : 1370mm
working platform size: 2150*1140
lift moter : 48/2.2
Drive Moter : 48/2.5
Voltage : 48
driving speed :3.5-4.5
max climb capacity: 10-15
battery : 4*12v/70Ah
charger : 48/10
overall length : 2250
overall width : 1300
overall height : 2370
Net Weight : 1760kg
Strong Air 1000 Liter, VG10 2-Head Air Compressor Electric 10HP+10HP, 11 Bar, 3PH 220V-380V 60Hz.
Product code: AR/1004
32,602.50 SR
Brand: Strong Air
Model : AR/1004
Tank Capacity : 1000 Liter
Motor Model : VG10
DB/ LWA: 82/97
Volt-Hz : 380V - 60 Hz
Motor : 10 Hp + 10 Hp
Displacement L/Min - Cfm : 2492 - 88,1
Rpm : 1320
Max Pressure Bar/Psi : 11/ 159
Weight : 600 Kg
(Made In Italy)
Features:
• 20HP Air compressor 1000 Lit 10HPx2
• 20HP Air compressor 1000 Lit two stages Piston air compressors with belt from 2 to 20 HP are equipped with the powerful and reliable two-cylinder, single stage and two stage..
• High performance at low running speeds.
• Reduced vibrations, which also reduces the noise level.
• Oil level inspection glass.
• Synthetic oil to ensure improved lubrication of moving parts
• Balanced sizing of the pumping unit, electric motor and capacity of the tank.
• Powder painting to guarantee perfect and lasting wear.
1000L AIR COMPRESSOR MOD#4V120x2H1000,20Hp+20Hp 8bar,CFM88.2
Product code: JAGUAR/AR-1002
32,200.00 SR
Brand : JAGUAR
Type: COMPRESSOR
Model : JAGUAR/AR-1002
Pressure bar ;8
CFM : 88.2*2=176.4
Moter Power : 20HP*2
Voltage :220V/3PH
Tank Capacity : 1000 ltr
ELECTRIC WIRE ROPE HOIST W/ MOTOR DRIVEN TROLLEY, 3T, 12M 380V
Product code: KKD/E3-KDWM
31,740.00 SR
Brand: KUKDONG
Brand: 12 Meter
Capacity: 3 Ton
MADE IN KOREA
Triax Cutting Machine Model : S52 Made In Italy
Product code: TRIAX/S52
31,050.00 SR
Model : S52
HP : 7.5
No.of Bar : 1
R55 Kg/mm2 : ø 44
R65 Kg/mm2 : ø 40
R85 Kg/mm2 : ø 36
Dimension Sizes :1000x680xh600 mm.
Weight : 330 kg
Bigred Four Post Hydraulic Car Lift Mod#4QJY5.0
Product code: BIGRED/4QJY5-B
29,900.00 SR
Brand: STONHOJ
2.2KW/380V 3PH
Capacity: 5000 kgs

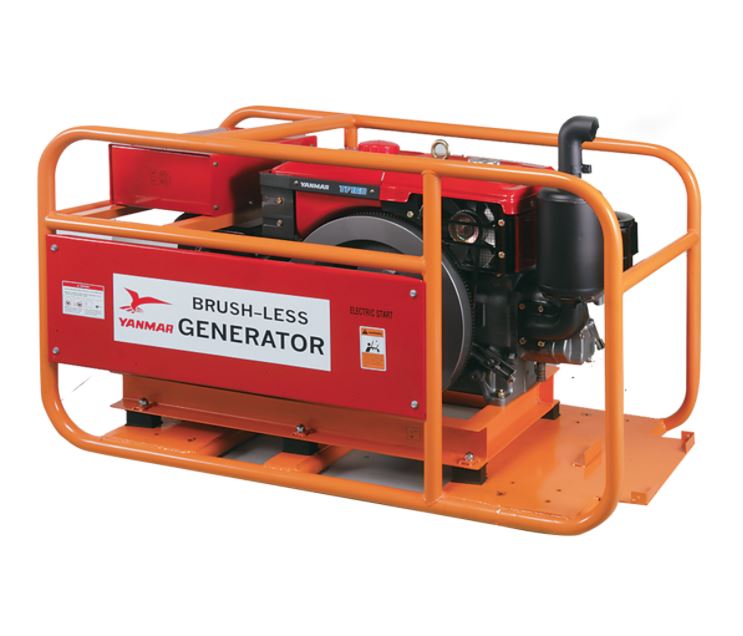

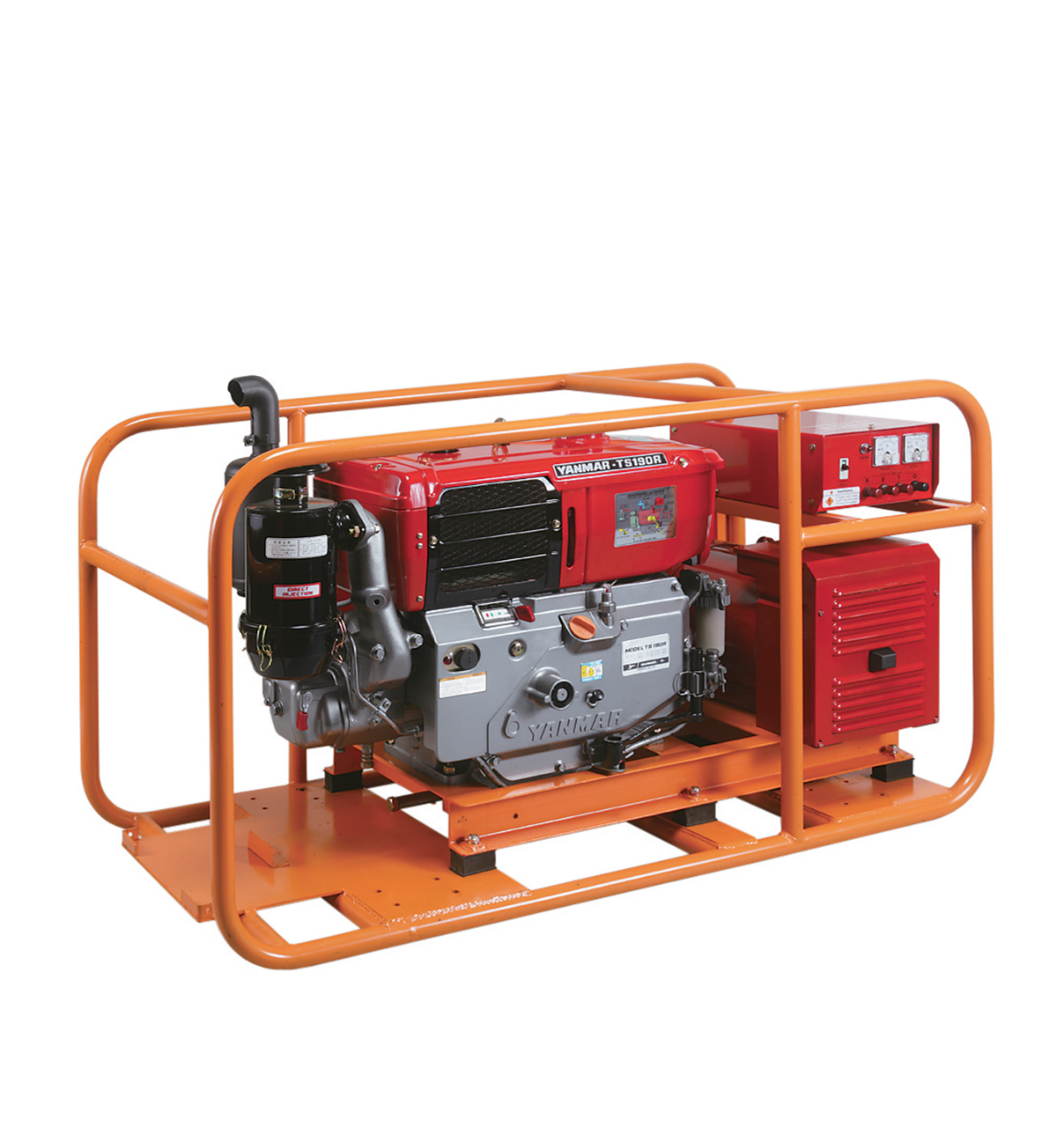

Yanmar Water Cooled Diesel Generator - 12.5 KVA
Product code: YAN/12.5H
28,405.00 SR
Brand name: Yanmar
Power Source: Diesel
Type: Generator
Model Number: YTG12.5T-E
Alternator Type: ECP3-3S/2
Output: 12.5KVA / 10KW
Current: 19 A
Voltage: 220 / 380V
Frequency: 60 Hz
Phase: 3 Phase
Power Factor: 0.8
Insulation Class: H
Speed: 3600 RPM
Standard: SASO 608/609
Net Weight (Dry): 318 KG
Operation Condition: Ambient Temperature Not Exceeding 50ᴼc
Electric Start
Heavy Duty
Made in Indonesia
1000L AIR COMPRESSOR MOD#ET100x2H1000 (10Hp+10Hp max 12 bar max 12bar
Product code: JAGUAR/AR-1001
27,600.00 SR
Brand : JAGUAR
Type: COMPRESSOR
Model : JAGUAR/AR-1001
Pressure bar ;8
CFM : 48*2=96
Moter Power :10HP*2
Voltage :220V/3PH
Tank Capacity : 1000 ltr
