Products
STEMA THICKNESS PLANER MAX PLANING THICK & WIDTH 200X 400MM
Product code: STEMANEW/MB104H
15,456.00 SR
Brand : Stema
Type : Thicknesser
Model : MB104h
Max .Planing width : 400 mm
Max Planing depth : 5 mm
Spindle speed : 4800 r/min
Max Planing thickness :200 mm
Min Planing thicknes : 8 mm
Min Planing length : 220 mm
Motor power : 4 kW
Feeding Speed : 8;10;12 m/min
Blade number : 4
Spindle dia : 105 mm
Dust outlet dia :100 mm
Net Weight : 445 kg
WOODWORKING DADO PLANER, MAX PLANING WIDTH 300MM(dq***********)
Product code: STEMA/MB503F
11,868.00 SR
Max .Planing width 300 mm
Max Planing depth 4 mm
Spindle speed 5600 r/min
Number of blades 3
Cutting diameter 87 mm
Total length of worktable 1800 mm
Motor power 2.2 kW
Motor Speed 2840 r/min
Net Weight 300 kg
TABLE SLIDINGMILLING MACHINE Max milling thickness:130mm
Product code: STEMANEW/MX5513B
16,560.00 SR
"Brand : Stema
Type: band saw
Model : Mx5513B
max milling height : 140 mm
Spindle lifting height : 210mm
Max.stroke of travelling table : 850 mm
spindle diameter : 35 mm
Spindle speed : 4500/7500/10000 r/min
Motor power : 4 kw
Overall diamension : 1300*1085*1350 mm
Net Weight : 630 kg
StemaNew Wood Working Single Spindle Shaper Milling Machine Modle - MX5117,3KW/220-380V/3Ph/60Hz
Product code: STEMANEW/MX5117
13,018.00 SR
Brand : Stema
Type: Milling Machine
Model : MX5117
Max. working height :170 mm
Motor power : 5.5 kW
speed : 6000/8000/10000 RPM
Net Weight : 500 Kg
STEMA MORTISING MACHINE
Product code: STEMANEW/MS302
13,018.00 SR
Brand : Stema
Type: Mortiser
Model : MS302
Max Mortising leanth :200 mm
Mortising width 0-20 mm
Max work place width : 300mm
Max Mortising depth : 100 mm
Max Tilt angle of table : 30
Working table Moving Height : 160 mm
Spindle speed : 3500 r/min
Motor power : 2.2 kW
overall dimensions :1183*628*1136 mm
Net Weight : 200 kg"""
Hand Operated Curling Machine, Model# XB-56/280
Product code: SJ/56
10,350.00 SR
Weight: 45 kg
Height: 570 mm
Width: 230 mm
Length: 730 mm
Working depth: 280 mm
Installation: On Bank / On Stand A1
Axial drop distance: 56 mm
Axial buttplate round valve: 15 mm
Opening of the upper pulley: 15 mm
Maximum material thickness: 1 mm
Diameter: 25 mm
Semet Hand Operated Flanging Machine,Model:XB-50/180
Product code: SJ/50
8,625.00 SR
Weight: 21 kg
Height: 360 mm
Width: 210 mm
Length: 515 mm
Maximum material thickness: 0.8 mm
Working depth: 180 mm
Mounting method: On the ponk / on the stand A1
Axial distance of the shafts: 50 mm
Axial displacement of the lower shaft: 15 mm
Opening of the upper shaft: 15 mm
Diameter of the shaft: 20 mm
Ridon Gasoline Welding Generator Mod:YHW-230AE
Product code: RIDON/YHW-230AE.
5,170.40 SR
Brand: RIDON
Model number: RDW230A
Displacement(cm3): 439
Ignition system Transistor
start system: Recoil/electric start
Generator Type: 2 pole, rotating type
Phase: Single
Rated power(KW): 50Hz 4.0
60Hz 5.0
Rated voltage(V): 220/230
Welder
Rated power factor: 1.0
Rated voltage(V): 25-28
Rated current(A): 200
Rated rotating speed(r/min): 3600
Current control range(A): 50-230
Rated duty cycle(%): 60
Electrode dia. (mm): 2.0-5.0
Others
Fuel tank capacity(L): 25
Electric Gasoline Generator - 6 KW Ridon Model RD7500E
Product code: RIDON/E7500
2,743.90 SR
Brand: Ridon
Model Number: RD7500E
Rate power(KW): 6.0
Max power(KW): 6.5
Frequency(Hz): 60
Voltage(v): 220/380
Phase: 1/3
Power factor: 1.0/0.8
Engine type: single cylinder, 4 strokes, air-forced cooling. Ohv
Starting: electrical start
Displacement (cc): 420
Oil cap. (l): 1.1
Fuel tank (l): 25
Continuous time(h): 6.5
Dimension (mm）: 695x525x580
Heavy duty
Ridon Gasoline Generator - 5 Kw Model RD6500E
Product code: RIDON/E6500
2,553.00 SR
Brand: Ridon
Model Number: RD6500E
Rated Power(kW): 5
Max Power(kW): 5.5
Frequency(Hz): 60
Voltage(V): 220/380
Phase: 1/3
Power Factor: 1.0/0.8
Engine Type: Single Cylinder, 4 Strokes, Air Forced Cooling. OHV
Starting: Electrical Start
Displacement (CC): 389
Oil Cap. (l): 1.1
Fuel Tank (l): 25
Continuous Time(h): 8
Dimension (mm）: 695x525x580
Heavy Duty
Ridon 2.8 KW Gasoline Generator Mod:RD3600E
Product code: RIDON/E3600
1,759.50 SR
Brand: Ridon
Model Number: RD3600E
Rated power(KW): 2.8
Max power(KW): 3.0
Frequency(Hz): 60
Voltage(V): 220
Phase: 1
Power factor: 1.0
Engine Type: Single Cylinder, 4 Strokes, Air-Forced Cooling. OHV
Starting: Electrical Start
Displacement (CC): 208
Oil Cap. (l): 0.6
Fuel Tank (l): 15
Continuous Time(h): 8
Dimension (MM）: 605x445x500
Heavy Duty
Gasoline Generator Model RD2500E
Product code: RIDON/E2500
1,499.60 SR
Brand: RIDON
Model Number:RD2500E
Rate Power(Kw): 2
Max Power(Kw): 2.2
Frequency(Hz): 60
Voltage(V): 220
Phase: Single
Power Factor: 1.0
Engine Type: Single Cylinder, 4 strokes, air-forced cooling. OHV
Starting: Electrical Start
Displacement (cc): 196
Oil Cap. (L): .6
Fuel Tank (L): 15
Continuous Time(H): 11
Gasoline Generator Ridon Brand, Model RD10000E,
Product code: RIDON/E10000
3,290.15 SR
Brand: RIDON
Model Number: RD10000E
Rate Power(Kw): 8
Max Power(Kw): 8.5
Frequency(Hz): 60
Voltage(V): 220/380
Phase: 1/3
Power Factor: 1.0/0.8
Engine Type: Single cylinder, 4 strokes, air-forced cooling. OHV
Starting: Electrical Start
Displacement (cc): 459
Oil Cap. (L): 1.2
Fuel Tank (L): 25
Continuous Time(H): 5
Remor Steel Cutting Horizontal Bandsaw Machine Model#RH-500
Product code: REMOR/RH-500
69,000.00 SR
Model NO : CH-500
Precision : High Precision
Certification : CE, ISO 9001, OHSAS18001
Condition : New
Blade Motor : 4KW (5.5HP)
Blade Size : 5450X41X1.3mm
Factory Inspection : Welcome
Transport Package : Plywood Case or as Required
Production Capacity : 10, 000sets/Year
Type : Band Sawing Machine
Horizontal Band Sawing Machine Type : Double Column
Saw Feed Direction : Horizontal
Track : Linear
Controlling Mode : Hydraulic Semi-automatic
Automatic Grade : Semiautomatic
Semi-automatic operation, easy to understand and use control panel;
★ Hydraulic downfeed rate is adjustable and controlled by stepless regulating valve;
★ During cutting process, saw frame quick approach to workpiece and slow down downfeed rate before blade touch the workpiece;
★ The saw machine uses roller bearings and carbide blocks to guide the blades which extend the blade life.
TECHNICAL SPECIFICATIONS:
MODEL RH-500
Cutting Capacity 0° round φ500mm φ19-2/3"
0° rectangular 500mm W x 500mm H 19-2/3" W x 19-2/3" H
Drive Capacity Blade Motor 4.0KW 5.5HP
Hydraulic Motor 0.75KW
Coolant Pump 0.06KW
Blade Speed 18/30/50/70m/min 59, 98, 164, 230fpm
Blade Size 5450x41x1.3mm
Workpiece Clamping Hydraulic Vise
Blade Tensioning Manual
Main Drive Wormwheel Drive
Table Height 510mm
Machine Weight 1820kg
Machine Size (LxWxH) 2700x1250x1850mm

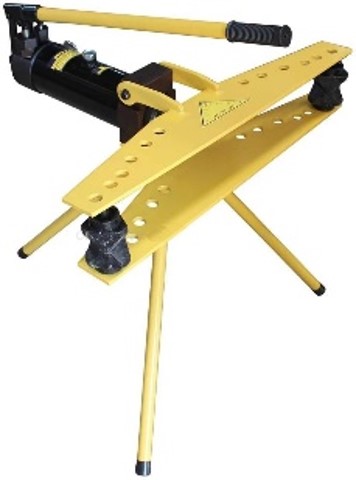

Manual Hydraulic Pipe Bender Machine 1/2" – 3” Inches
Product code: REGID/HHW-3J
1,759.50 SR
Brand Name: REGID
Max Pressure : 19 T
Max Stoke : 320 mm
Crimp Range: 21.5 - 88.5
Size: 3” Inch
Bending Dies(Inch): ½” - ¾” - 1” - 1 ¼” - 1 ½” - 2” - 2 ½” - 3” Inch.
Wall Thick : 2.75 - 5 mm
Gross Weight : 117 Kg
Manual Hydraulic Pipe Bender Machine – ½” – 2” Inch
Product code: REGID/HHW-2J
1,122.40 SR
Brand Name: REGID
Size: 2” Inch
Max . Pressure : 9 T
Max. Stoke : 250 mm
Crimp Range : 21.5 - 60
Bending Dies : ½” , ¾”,1",1 ¼”,1 ½”, 2" Inch
Wall Thick : 2.75 - 4.5 mm
Gross Weight : 53 Kg
Robin 3''inch Gasoline Water Pump Model#PTG310
Product code: RBN/WP3-C
789.11 SR
Brand : Robin
Model : PTG310
Type : Water Pump (Self-Priming, Centrifugal Pump)
Suction * Delivery Diameters : 7.62*7.62 Cm
Total Head : 3.2 Cm
Maximum Delivery Volume : 1000 L / min
Suction Head : 8 m
Axle Seal Material (Mechanical Seal) : Ceramic - Carbon
Engine Model : EY20DJ
Type : Robin Air-Cooled, 4 Stroke, Gasoline Engine
Fuel : Automobile Gasoline
Fuel Tank Capacity : 3.5 Lt
Starting System : Recoil Starter
Dimensions (L*W*H) : 52.7*37.8*42.2 Cm
Dry Weight : 30 kg
Robin 2”Inch Gasoline Water Pump Model # PTG210
Product code: RBN/WP2-C
586.50 SR
Brand: Robin
Model : PTG210
Type : Water Pump (Self-Priming, Centrifugal Pump)
Suction * Delivery Diameters : 2*2 in
Total Head : 32 m
Maximum Delivery Volume : 520 L/min
Suction Head : 8 m
Axle Seal Material (Mechanical Seal) : Ceramic-Carbon
Engine Model : EY15DJ
Type : Robin Air-cooled,4-stroke,Gasoline engine
Fuel : Automobile gasoline
Fuel Tank Capacity: 3 Lt
Starting System : Recoil starter
Dimensions(L*W*H) : 47.0*35.4*41.9 Cm
Dry Weight : 25 Kg
6TON JACK STAND( SET 2 PCS ) MIN:HEIGHT 390MM MAX:HEIGHT 605MM TL2003-9
Product code: PINGHU/TL2003-9
132.25 SR
Brand : Pinghu
Type:r Jack Stand
Model : TL2003-9]
Metric Ton : 6
Min Height : 390mm
Max Height : 605mm
Dia :290*260*460
Net Weight : 10.5
5TON LONG FLOOR JACK MIN:HEIGHT 160MM,MAX:HEIGHT 560MM
Product code: PINGHU/TL2000-2
2,645.00 SR
Brand : Pinghu
Type: Long Floor Jack
Model : TL2000-2]
Metric Ton : 5
Min Height : 160 mm
Max Height : 560mm
Dia :1570*420*290
Net Weight : 90
